Visualizing event sequences

When studying sequences of events (e.g care trajectories, drug sequences, ...), it might be useful to visualize individual sequences. To that end, we provide the plot_event_sequences function to plot individual sequences given an events dataframe.

Load a synthetic dataset

An events dataset has been created to illustrate the visualization function. It can be load as follows :

from eds_scikit.datasets.synthetic.event_sequences import load_event_sequences

df_events = load_event_sequences()

The df_events dataset contains occurrences of 12 events, derived from 7 events' families ("A", "B", "C", "D", "E", "F", "G).

Events can be both one-time and continuous.

An index_date is also provided and refers to the inclusion date of each patient in the cohort.

The first raws of the dataframe are as follows :

df_events.head()
# Out:  person_id event_family event event_start_datetime event_end_datetime index_date
0          1           A        a1        2020-01-01         2020-01-02      2020-01-01
1          1           A        a2        2020-01-03         2020-01-04      2020-01-01
2          1           B        b1        2020-01-03         2020-01-06      2020-01-01
3          1           C        c1        2020-01-05         NaT             2020-01-01
4          1           C        c2        2020-01-06         2020-01-08      2020-01-01

Visualize individual sequences

Basic usage

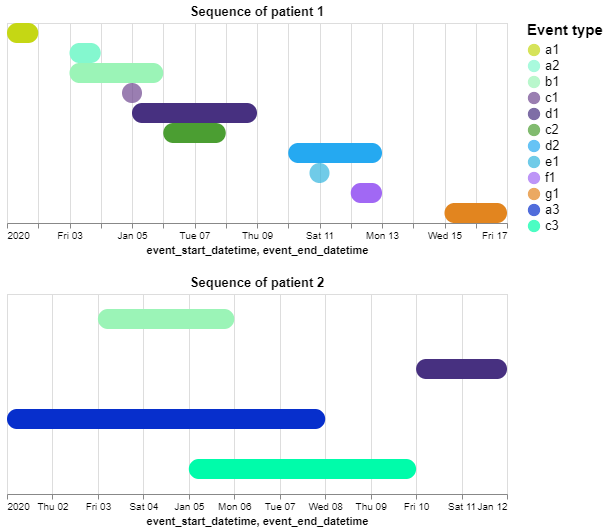

Individual sequences of events can be plotted using the plot_event_sequences function :

from eds_scikit.plot.event_sequences import plot_event_sequences

chart = plot_event_sequences(df_events)
chart

Image title

Advanced parameters

Further configuration can be provided, including : - dim_mapping : dictionary to set colors and labels for each event type. - family_col: column name of events' families. - list_person_ids: List of specific person_id - same_x_axis_scale: boolean to set all individual charts to the same scale

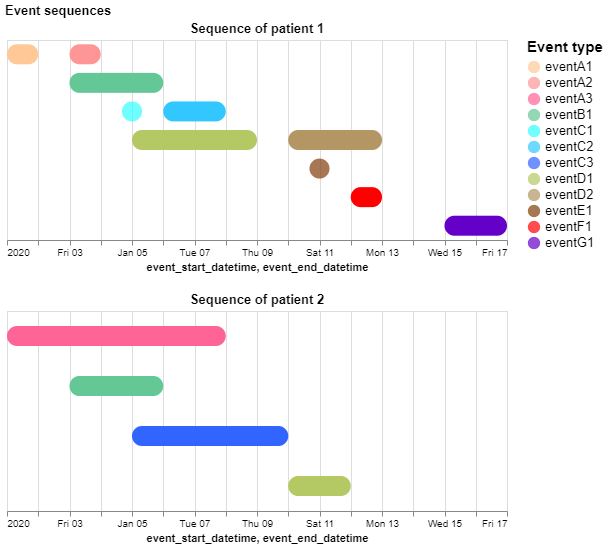

Here we provide an exemple of dim_mapping, and we plot sequences aggregated following the event_family classification.

dim_mapping = {
    "a1":{"color":(255, 200, 150), "label":"eventA1"},
    "a2":{"color":(255, 150, 150), "label":"eventA2"},
    "a3":{"color":(255, 100, 150), "label":"eventA3"},
    "b1":{"color":(100, 200, 150), "label":"eventB1"},
    "c1": {"color":(50, 255, 255), "label":"eventC1"},
    "c2": {"color":(50, 200, 255), "label":"eventC2"},
    "c3": {"color":(50, 100, 255), "label":"eventC3"},
    "d1": {"color":(180, 200, 100), "label":"eventD1"},
    "d2": {"color":(180, 150, 100), "label":"eventD2"},
    "e1": {"color":(130, 60, 10), "label":"eventE1"},
    "f1": {"color":(255, 0, 0), "label":"eventF1"},
    "g1": {"color":(100, 0, 200), "label":"eventG1"},
}

plot_event_sequences(
    df_events,
    family_col = 'event_family',
    dim_mapping = dim_mapping,
    same_x_axis_scale=True,
    title="Event sequences",
)

Image title

Please check the documentation for further details on the function's parameters.
